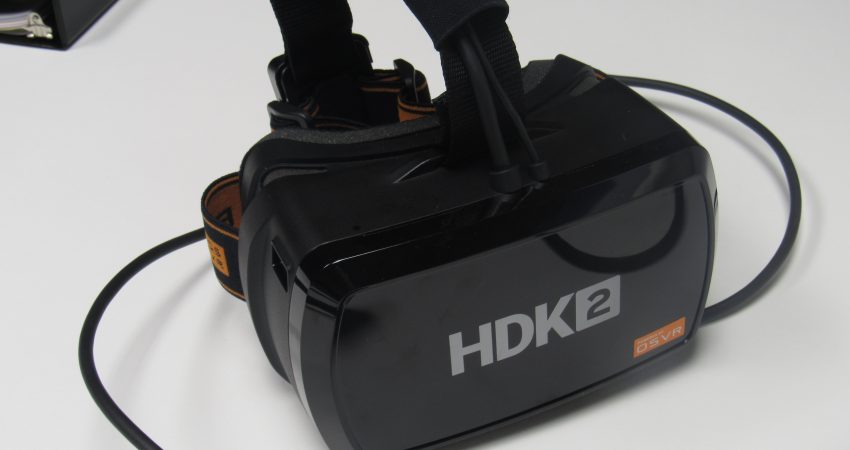

Razer OSVR 2.0 Setup
Content
<u>Standard Operating Procedure for Razer OSVR 2.0 Operation</u> <u>Installing the Software</u> <ol> <li>Install Steam: <img class="aligncenter size-full wp-image-253" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/Steam-Website.png" alt="" width="973" height="470" /> <a href="http://store.steampowered.com/about/">http://store.steampowered.com/about/</a></li> <li>Run Steam and login to your account or create one. <img class="aligncenter size-full wp-image-252" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/Steam-Login.png" alt="" width="467" height="309" /></li> <li>Install SteamVR: <ol> <li>Navigate to the “Tools” section of the library. <img class="aligncenter size-full wp-image-251" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/Steam-Library.png" alt="" width="262" height="443" /></li> <li>Scroll down to “SteamVR” and double-click it to start the installation process.</li> </ol> </li> <li>Install the OSVR Software: <ol> <li>Download the OSVR all-in-one installer: <a href="http://assets.razerzone.com/eeimages/osvr/HDK_Windows_Installer_Beta_0.8.0.0.exe">http://assets.razerzone.com/eeimages/osvr/HDK_Windows_Installer_Beta_0.8.0.0.exe</a></li> <li>Run it, and allow it to install everything.</li> <li>Download the OSVR SteamVR driver: <a href="https://github.com/OSVR/SteamVR-OSVR">https://github.com/OSVR/SteamVR-OSVR <img class="aligncenter size-full wp-image-254" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/SteamVR-Driver.png" alt="" width="936" height="339" /></a></li> <li>Extract the file and paste the folder lib\openvr\osvr to your Steam\steamapps\common\SteamVR\drivers folder. <img class="aligncenter size-full wp-image-255" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/Windows-Explorer.png" alt="" width="658" height="225" /></li> <li>Run the OSVR Config program to configure your settings, and then run osvr_server.exe or click “Start” in the OSVR tray application. <img class="aligncenter size-full wp-image-250" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/OSVR-Tray.png" alt="" width="283" height="247" /></li> </ol> </li> <li>To use content, start SteamVR, select your game, and put on the headset.</li> </ol> &nbsp; <p style="text-align: center;"><u>Setting up the Hardware</u></p> <p style="text-align: center;"><img class="aligncenter wp-image-236 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0549-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 1: Everything</p> <p style="text-align: center;"><img class="aligncenter wp-image-227 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0540-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 2: Splitter Cable</p> <p style="text-align: center;"><img class="aligncenter wp-image-229 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0542-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 3: Power Cable</p> <p style="text-align: center;"><img class="aligncenter wp-image-230 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0543-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 4: IR Camera</p> <p style="text-align: center;"><img class="aligncenter wp-image-232 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0545-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 5: Breakout Box</p> <p style="text-align: center;"><img class="aligncenter wp-image-233 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0546-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 6: Micro USB Cable</p> <p style="text-align: center;"><img class="aligncenter wp-image-234 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0547-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 7: Display Cable</p> <p style="text-align: center;"><img class="aligncenter wp-image-235 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0548-1024x576.jpg" alt="" width="850" height="478" /></p> <p style="text-align: center;">Figure 8: Headset</p> <p style="text-align: left;"><u> Step-by-step Setup:</u></p> <ol> <li><img class="aligncenter wp-image-238 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0551-1024x576.jpg" alt="" width="850" height="478" /> <img class="aligncenter wp-image-239 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0552-1024x576.jpg" alt="" width="850" height="478" /> Plug the display cable into the breakout box as pictured.</li> <li><img class="aligncenter wp-image-242 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0555-1024x576.jpg" alt="" width="850" height="478" /> <img class="aligncenter wp-image-243 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0556-1024x576.jpg" alt="" width="850" height="478" /> Plug the power cable into the splitter cable as pictured.</li> <li><img class="aligncenter wp-image-244 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0557-1024x576.jpg" alt="" width="850" height="478" /> <img class="aligncenter wp-image-245 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0558-1024x576.jpg" alt="" width="850" height="478" /> Plug the splitter cable into the breakout box as pictured.</li> <li><img class="aligncenter wp-image-246 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0559-1024x576.jpg" alt="" width="850" height="478" /> <img class="aligncenter wp-image-247 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0560-1024x576.jpg" alt="" width="850" height="478" /> Plug the headset into the breakout box as pictured. Optionally, headphones can be plugged into the same side.</li> <li><img class="aligncenter wp-image-248 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0561-1024x576.jpg" alt="" width="850" height="478" /> <img class="aligncenter wp-image-249 size-large" src="https://helpdesk.theholler.org/wp-content/uploads/sites/10/2017/05/IMG_0562-1024x576.jpg" alt="" width="850" height="478" /> Plug the splitter cable and the Micro-USB cable into the IR camera.</li> <li>Plug the power cable into a power outlet, and plug the remaining loose USB and HDMI ends into your computer, and your device will be ready for operation.</li> </ol>
